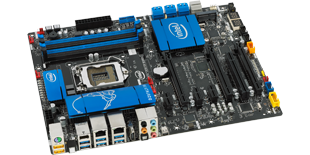

Intel® Desktop Board DZ87KLT-75K

Intel® Desktop Board DZ87KLT-75K

Whether you are into extreme gaming, overclocking, or high-end video manipulation, Intel® Desktop Board DZ87KLT-75K is the motherboard for you. This board has been highly optimized for the Intel® –K processor line to take full advantage of all that the processor family has to offer.
Support for CrossFireX* and SLI*, USB 3.0, SATA 6 Gb/s, and dual LAN allows endless connection possibilities. And if you enjoy pushing the envelope with the ultimate in connectivity, this board offers on-board Thunderbolt™ technology for blistering bidirectional 10 Gb/s transfer rates.
Nothing moves content in and out of your system faster. All this in a board from Intel—your trusted technology team.

Product Brief:  Preview |  Download

Supported System Types:

More Information

Product information

Features and configurations >

BIOS and driver updates >

Technical documentation >

Compatible Intel® processors >

Product support page >

Tools and support

Processor match >

Memory compatibility >

Downloads and drivers >

Desktop boards support >

Features and configurations
Form factor	ATX
AA# (Altered Assembly)	G74721-xxx
BIOS ID string	KLZ8711D.86A
Processor	Supports the 4th generation Intel® Core™ i7 processor, Intel® Core™ i5 processor and other Intel® processors in the LGA1150 package, highly optimized for the Intel® –K processor line View all compatible Intel® processor numbers
Memory	Dual channel DDR3 2400+MHz O.C, DDR3 1600/1333 MHz, Supports Intel® Extreme Memory Profile (Intel® XMP) Support for up to 32 GB of system memory
Chipset	Intel® Z87 Chipset
Display	Three PCI Express* 3.0 x16 graphics slots (switchable to x8 or x4) Supports ATI CrossfireX* and NVIDIA SLI* HDMI* display connector
Audio	Intel® High Definition Audio1 subsystem in the following configuration: 10-channel (8+2) Intel® High Definition Audio Five stack analog audio ports with optical S/PDIF out and S/PDIF header Front panel microphone/headphone header
LAN support	Gigabit Ethernet controller
Peripheral interfaces	Eight USB 2.0 ports (two back panel ports, six via internal headers – includes two high-current back panel ports and two high-current internal ports for charging) Eight USB 3.0 ports (six back panel ports, two via internal headers ) One PS/2 connector (keyboard or mouse)
Expansion capabilities	Thunderbolt™ interface Eight Serial ATA 6.0 Gb/s ports Two IEEE 1394a ports (one back panel port, one via internal header) One PCIe* Mini Card slot with support for mSATA solid-state drive Three PCIe x1slots One PCI slot
